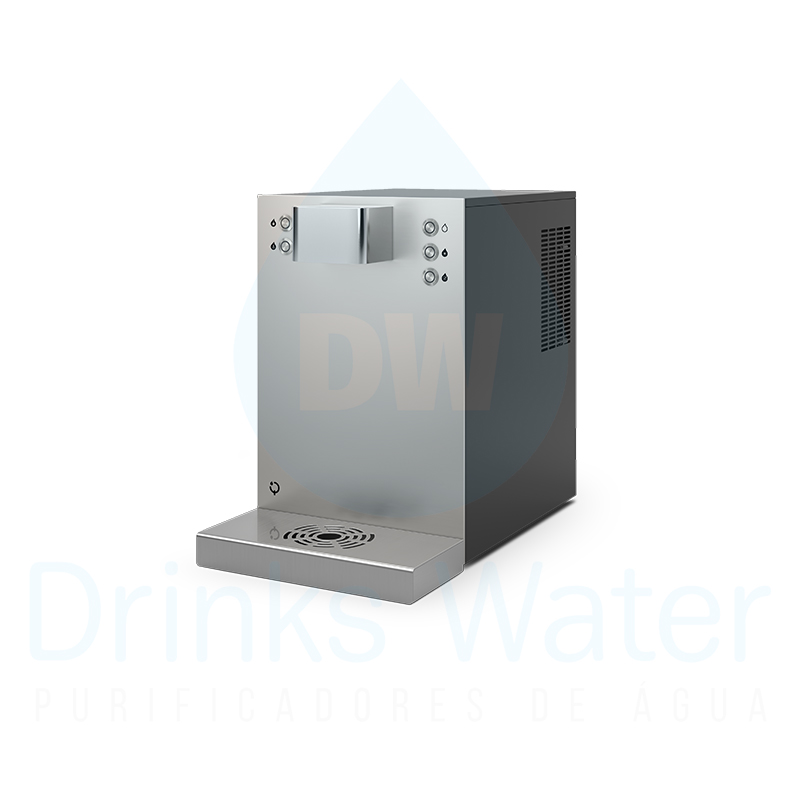

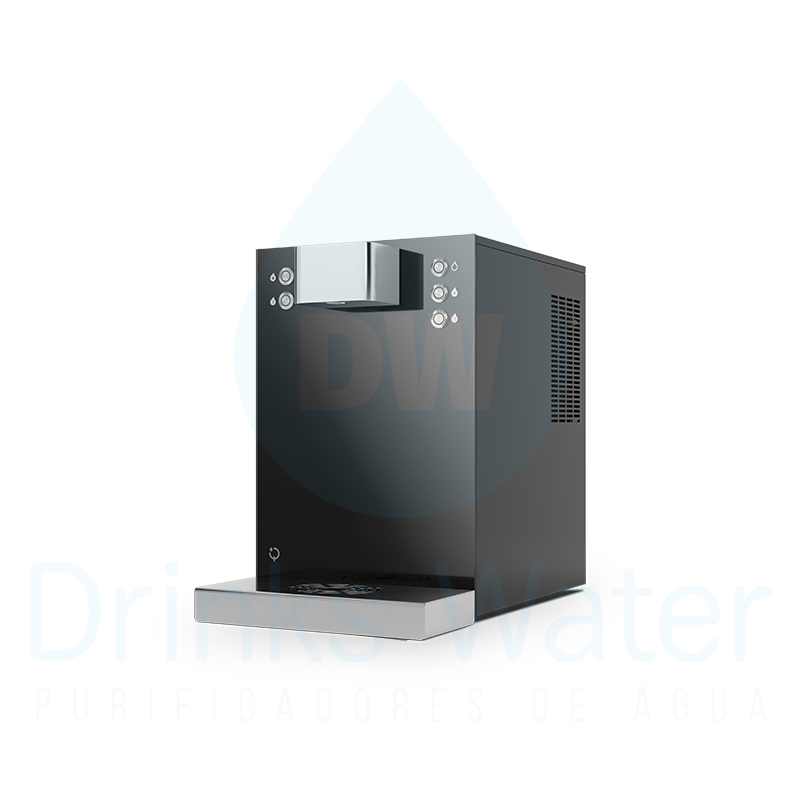

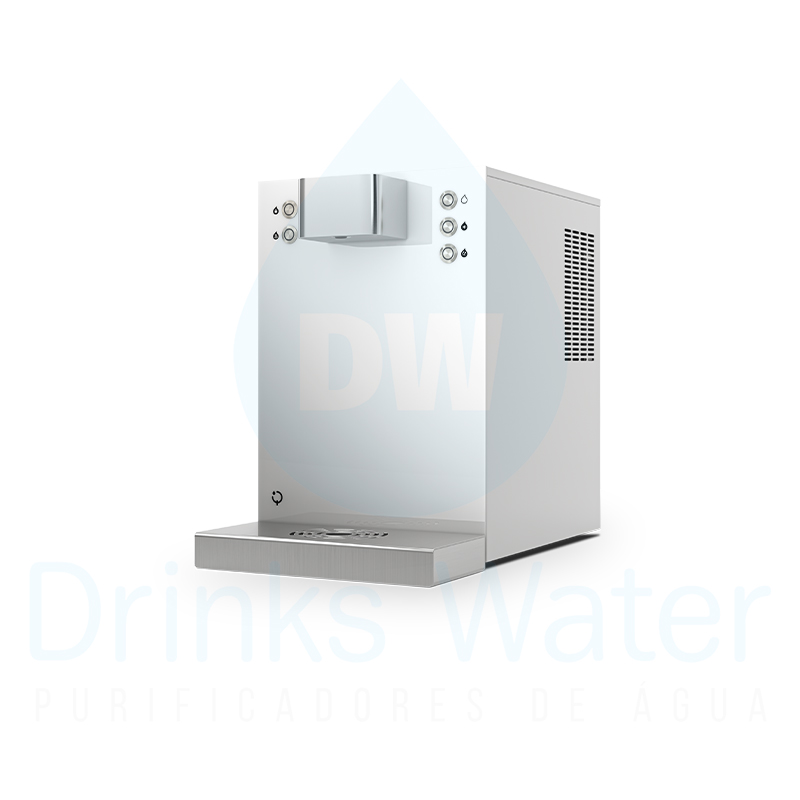

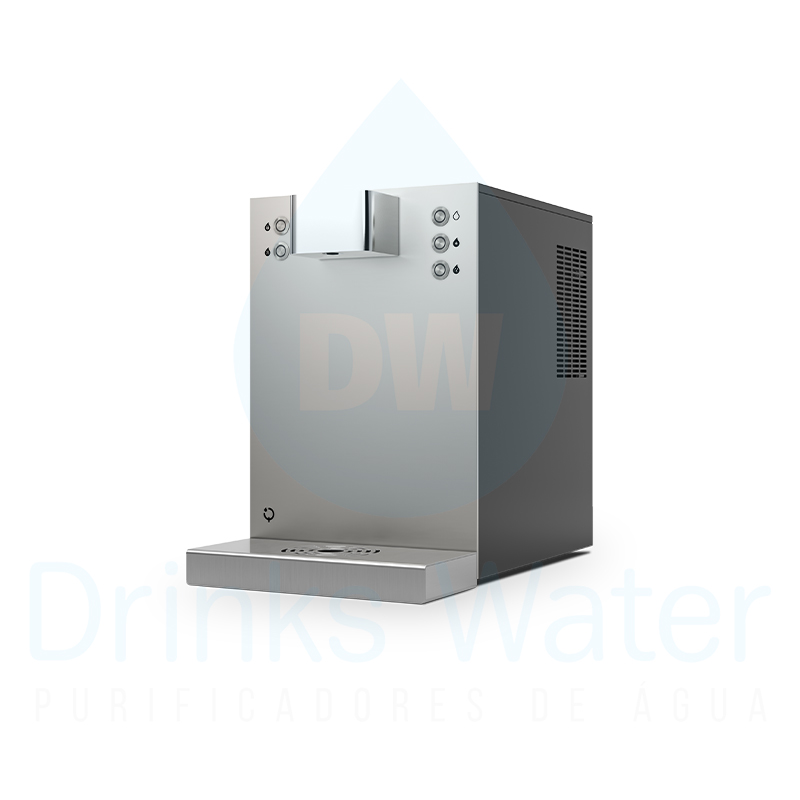

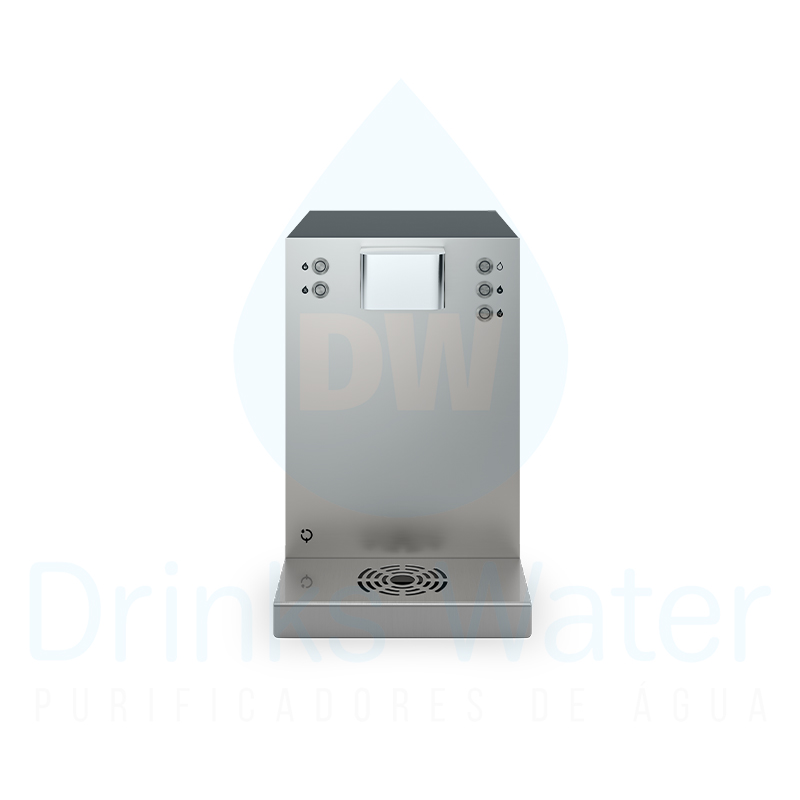

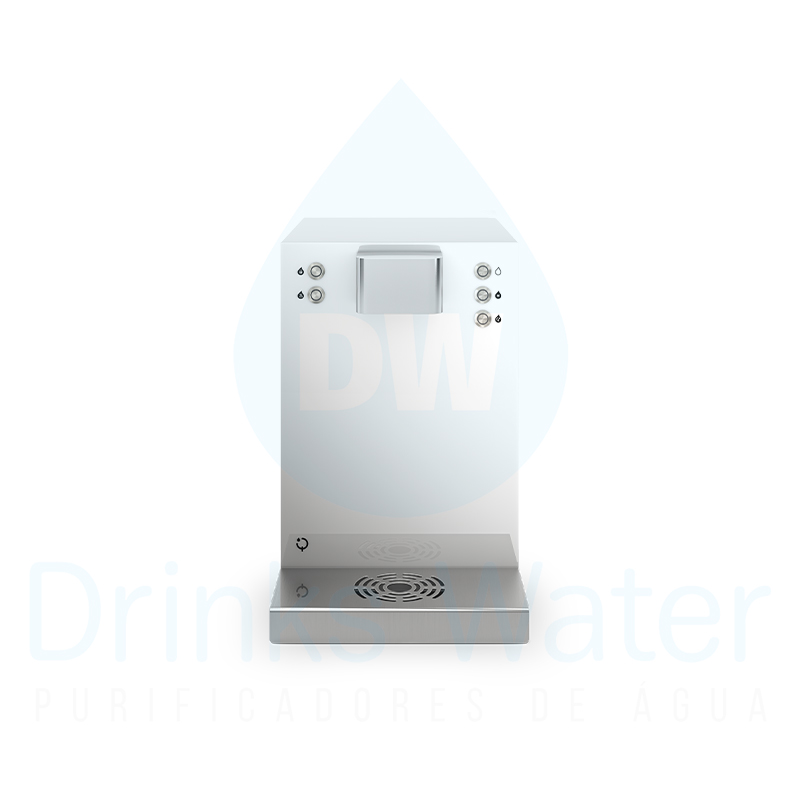

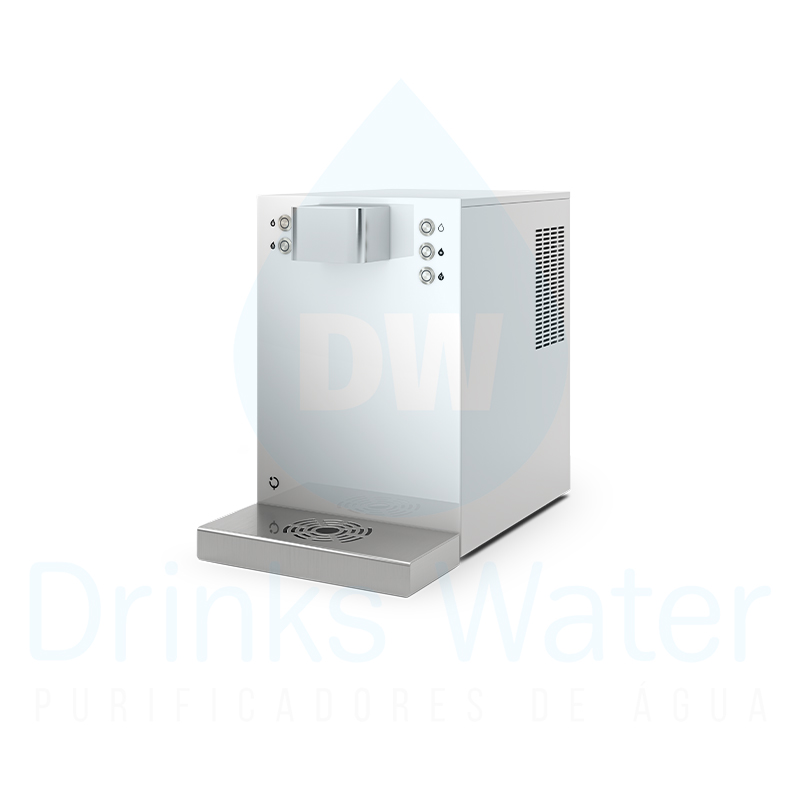

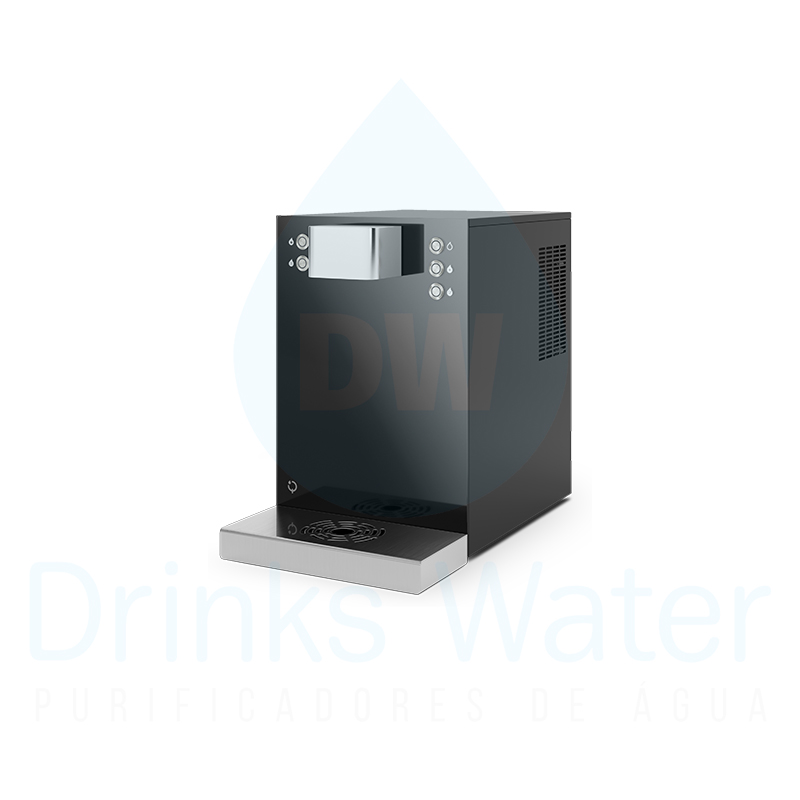

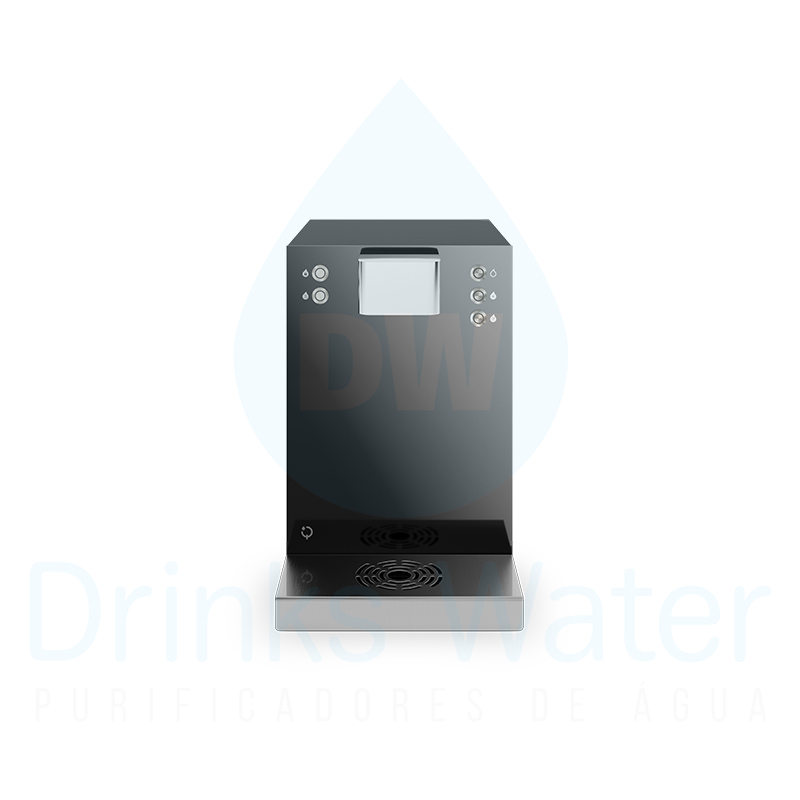

Countertop electronic water dispenser.
Offers natural, fresh, hot and sparkling water.
Ideal for bars, cafes, restaurants and offices.
Q3 Top offers all the water you need both in your establishment and in any other environment.
Created to improve sustainability, the Q3 Top system is the solution for offices and horeca establishments.
The Q3 is a compact system that offers hospitality-friendly performance and perfectly combines elegance with professional performance.
Available Models:
• Room temperature + Cold temperature
• Room temperature + Cold temperature + With gas
• Room temperature + Cold temperature + With gas + Hot temperature
| Technology: | Ice tank with 7 liter capacity |
|---|---|
| Test conditions: | 20°C input at 25°C ambient temperature. |
| Performance: | 60 liters/h; 20 Lts continuously < 12°C |
| Boiler: | 1 Lt – 1200 W – Temperature 98 ºC |
| Carbonator: | Stainless steel – 1 L capacity |
| Carbonation pump: | membrane pump |
| Refrigerant gas: | R290 |
| Compressor: | 1/7 HP- 22O/230 V – 50 Hz |
| Thermostat: | Mechanic |
| Condensation: | Dynamic ventilation |
| Coils: | 8mm stainless steel |
| Water inlet: | 8 mm |
| CO2 Input: | 8 mm |
| Filling the ice tank: | 8 mm |
| Water inlet pressure: | Ideal pressure of 3 bar |
| CO2 inlet pressure: | Optimum pressure of 3.5 – 4.5 bar |
| Finish: | Skinplate housing or front glass |
| Power supply: | 230 V / 50 Hz |

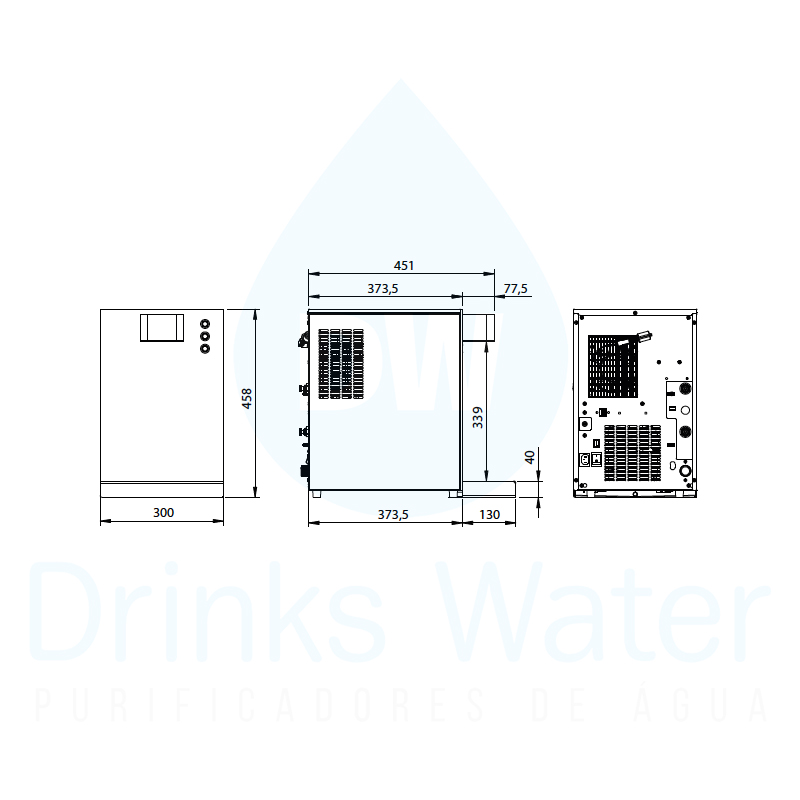

| Dimensions: | 300 x 503.5 x 458 mm (W x D x H) |
| Weight: | 28 Kg |
| Accessories included: | Flow regulator. |
| Accessories not included: | Filtration kit. |
