Countertop electronic water dispenser.
Offers natural, fresh, hot and sparkling water.
Ideal for bars, cafes, small restaurants and offices.

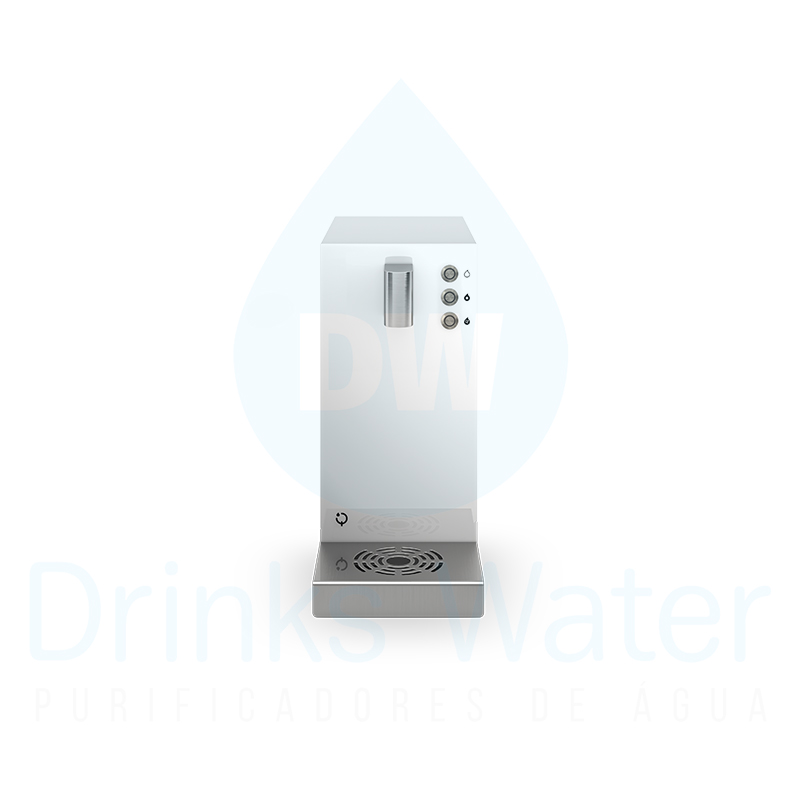

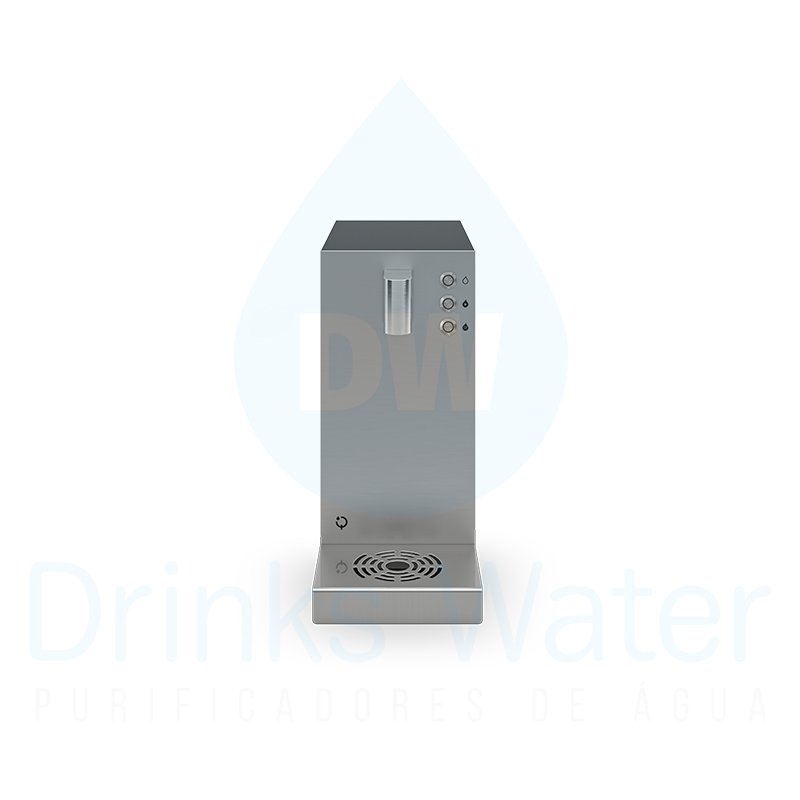

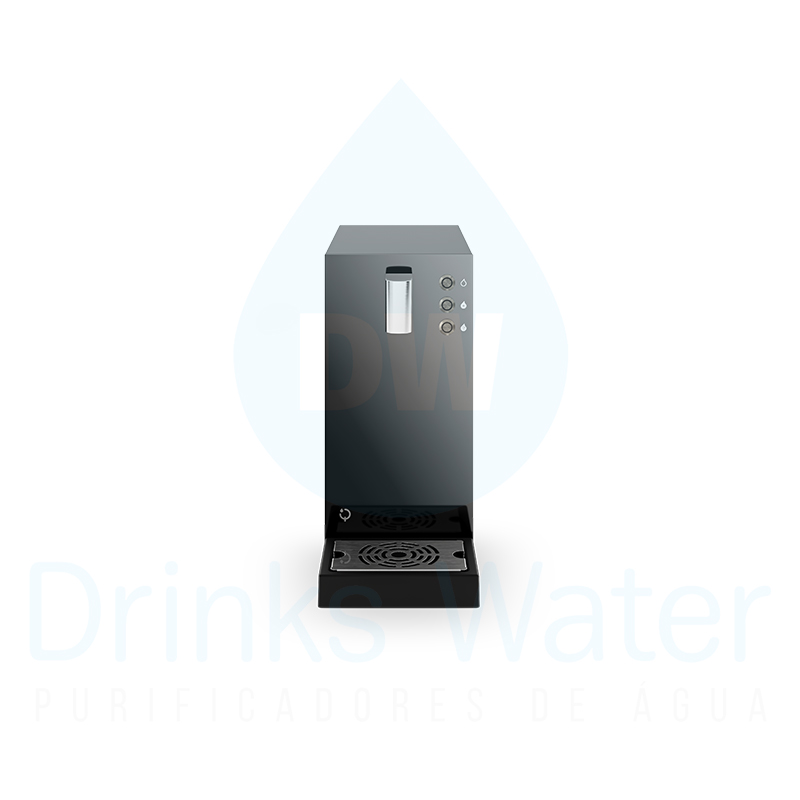

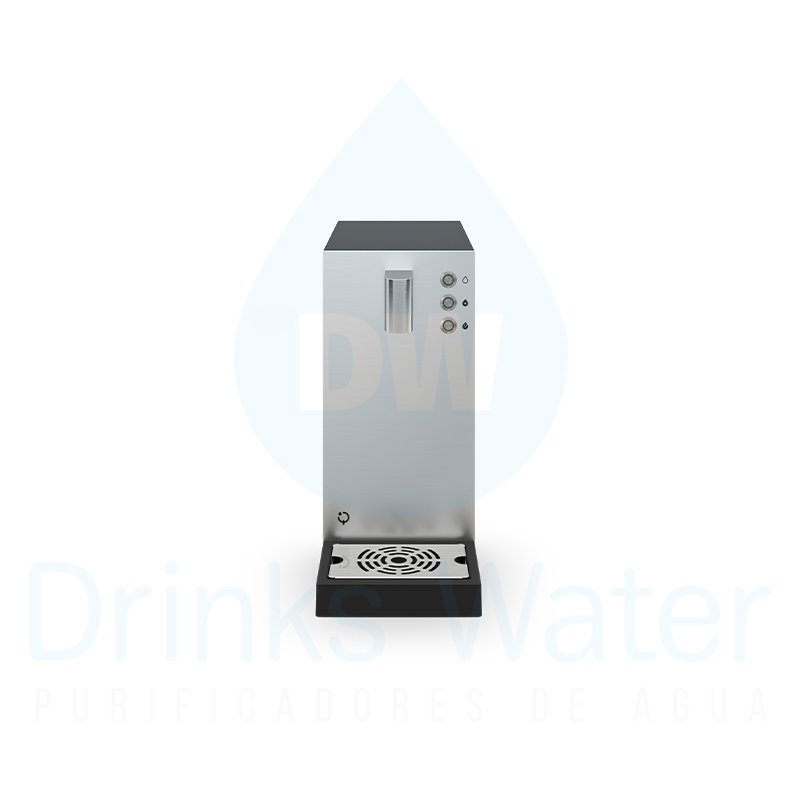

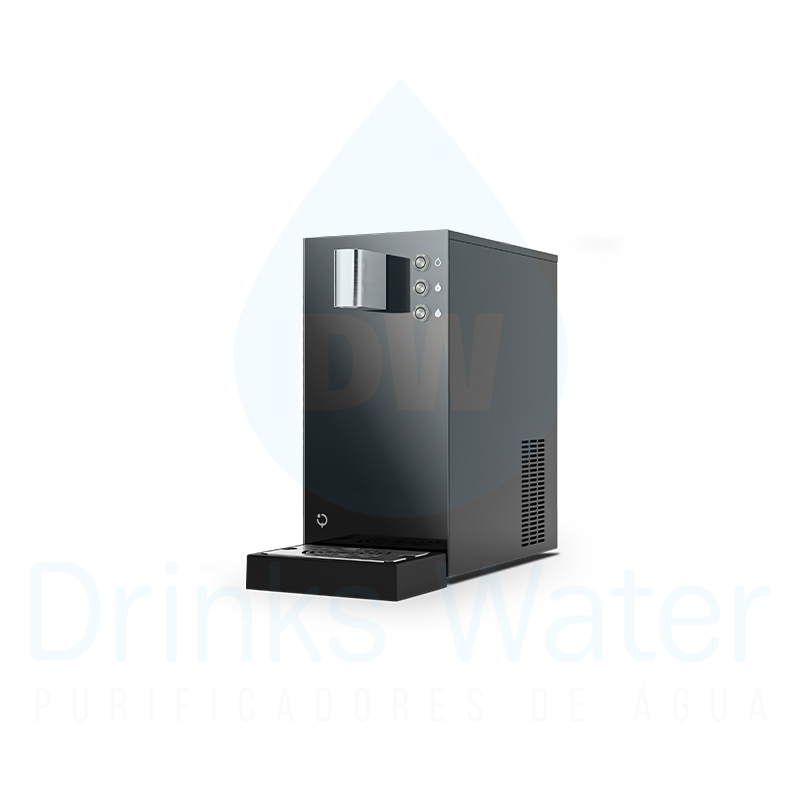

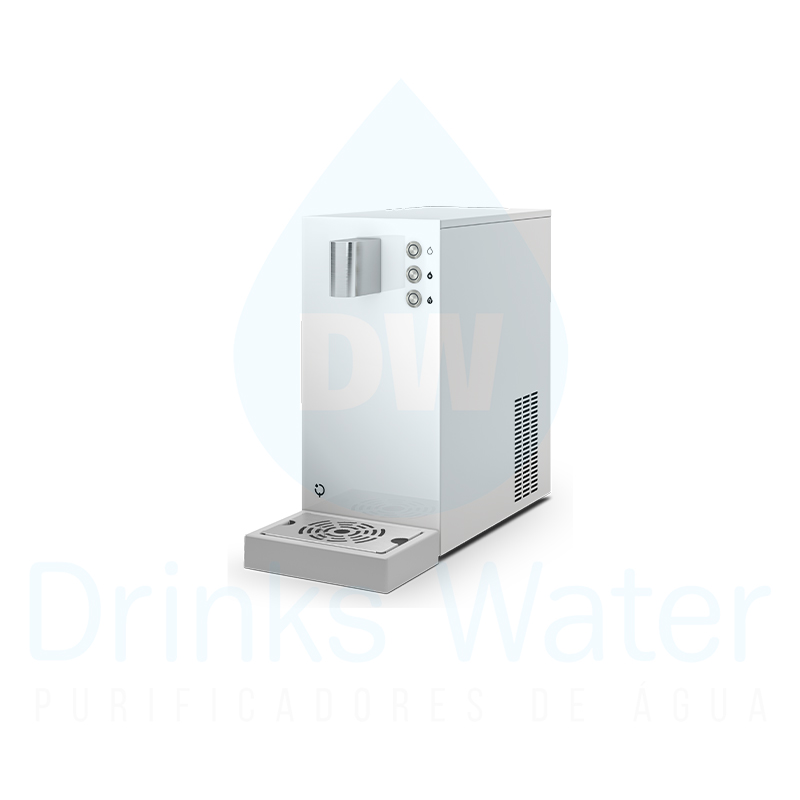

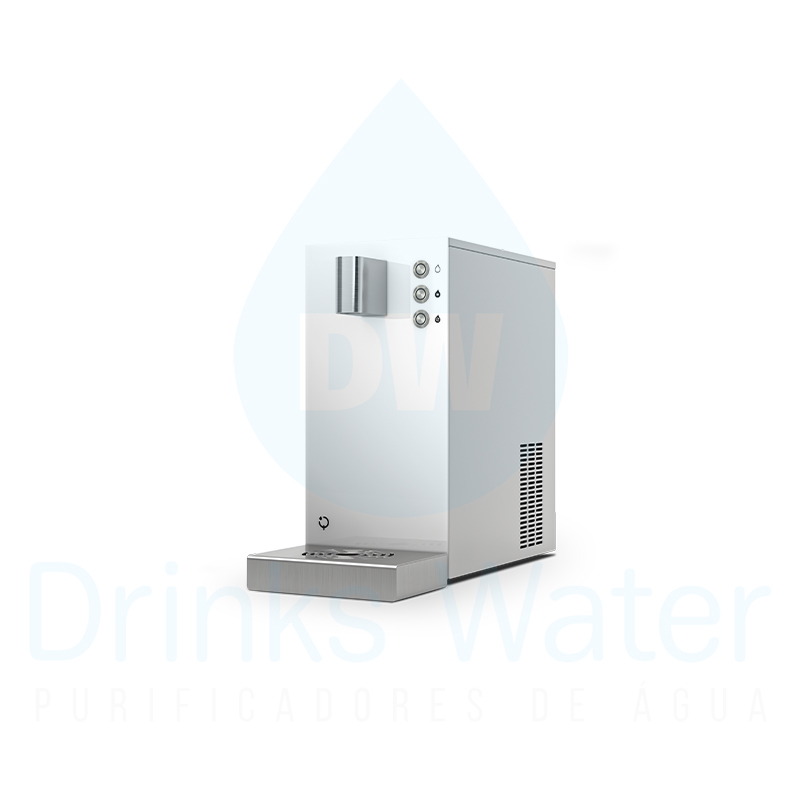

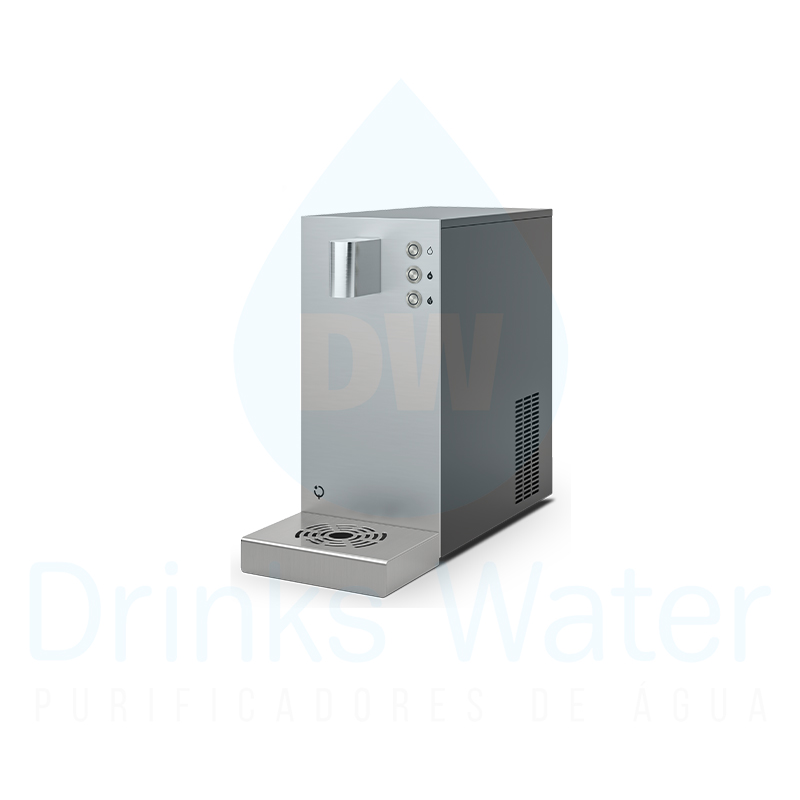

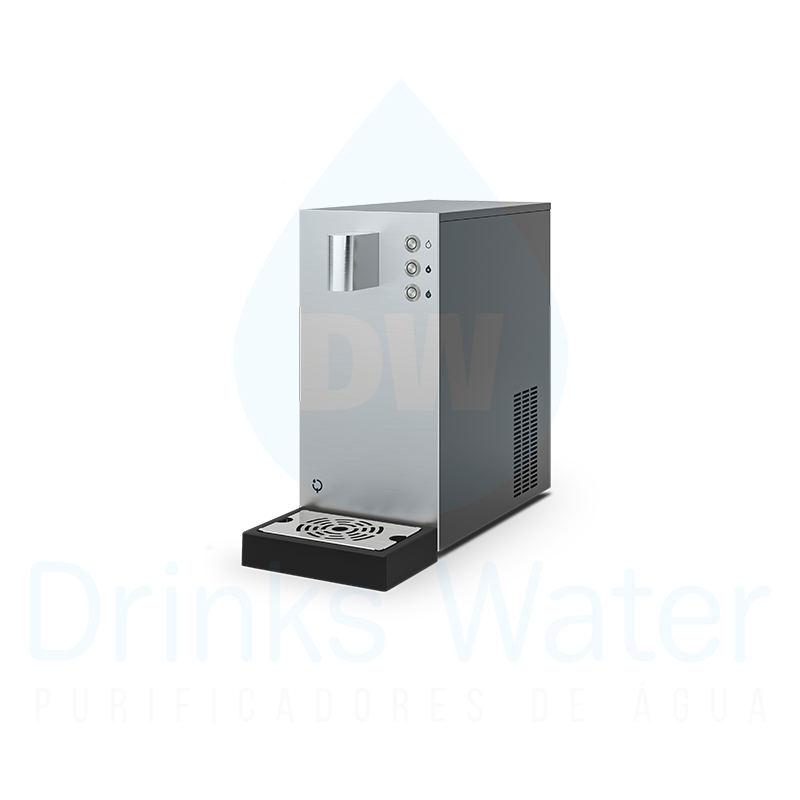

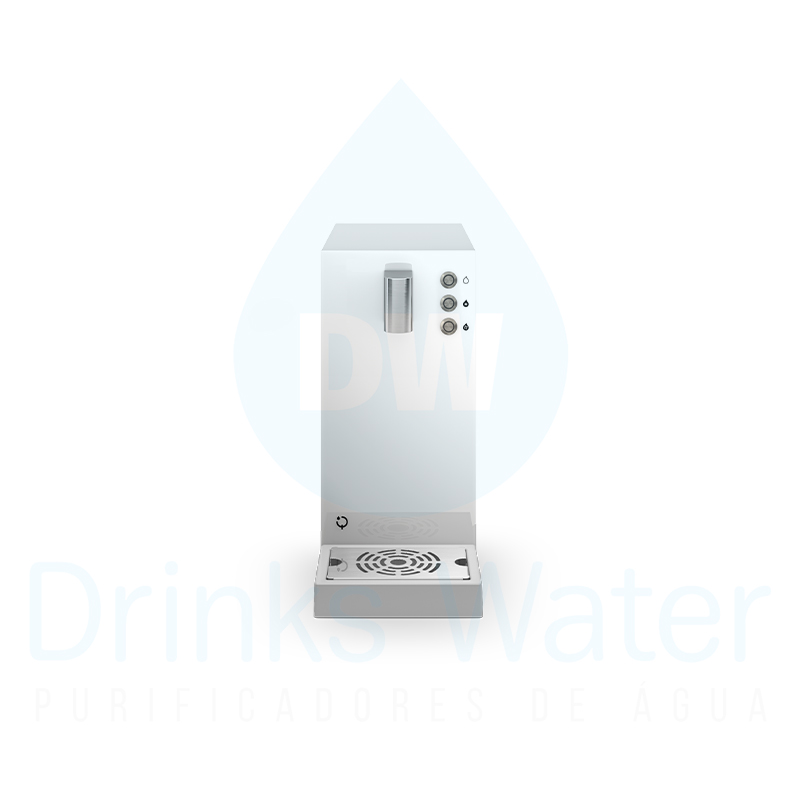

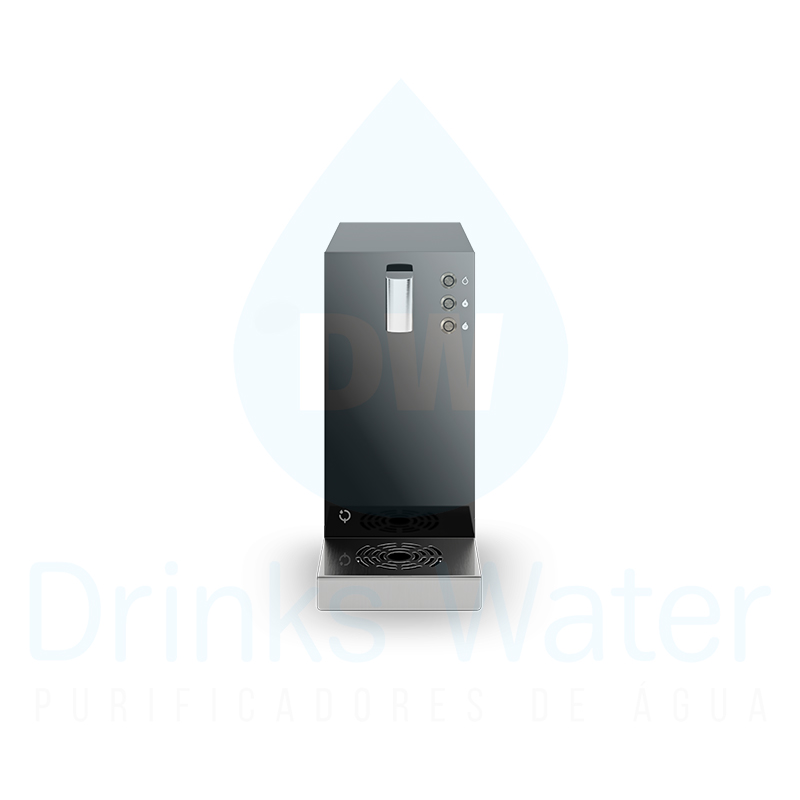

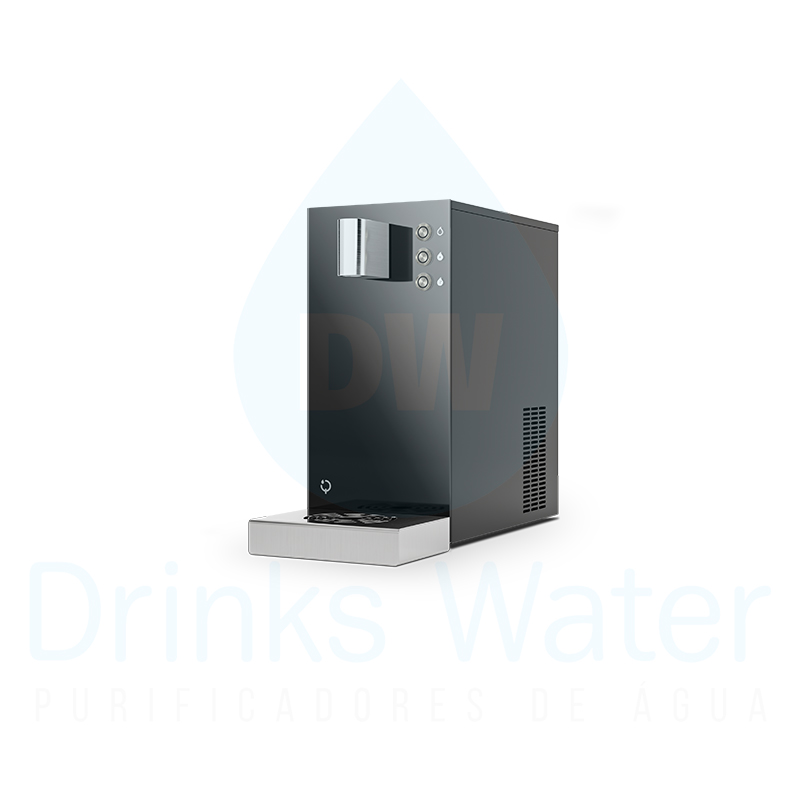

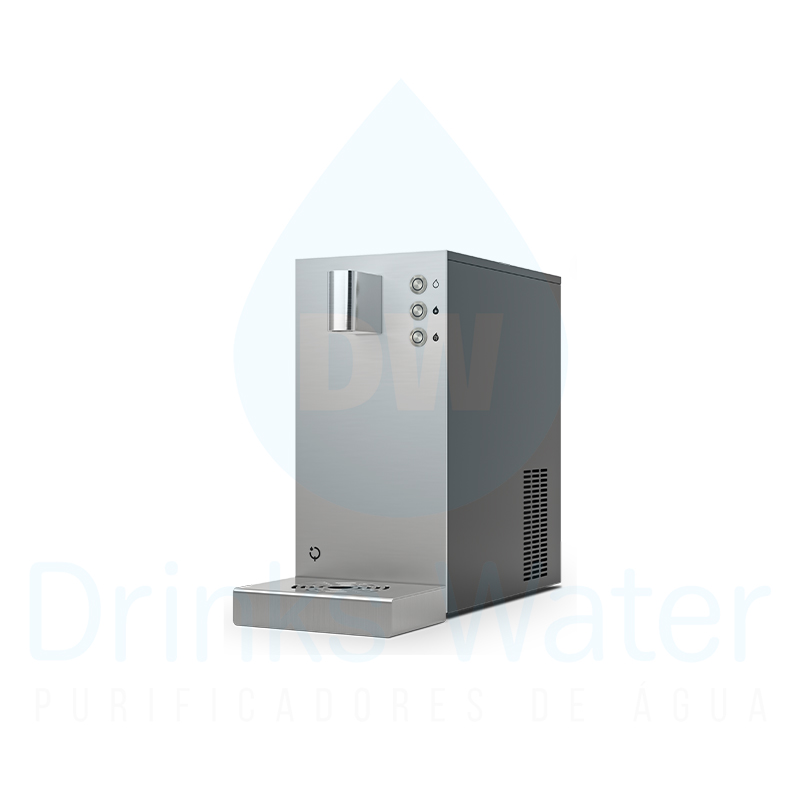

Q1 Top is a countertop water dispenser and cooler with an elegant, compact and silent design.
It is the perfect solution for homes, offices, bars, small kitchens, cafes and restaurants. It is designed to elegantly save space and meet the needs of 1 to 20 people.
Available Models:
• Room temperature + Cold temperature
• Room temperature + Cold temperature + With gas
• Room temperature + Cold temperature + With gas + Hot temperature
| Technology: | Ice tank with 4.3 liter capacity |
|---|---|
| Test conditions: | 20°C input at 25°C ambient temperature. |
| Performance: | 30 liters/h; 6 Lts continuously < 12°C |
| Heater: | 0.5 L – 1200 W – temp. 98°C |
| Carbonator: | Stainless steel – 0.5 L capacity |
| Carbonation pump: | membrane pump |
| Refrigerant gas: | R290 |
| Compressor: | 1/12 HP- 22O/230 V – 50 Hz |
| Thermostat: | Mechanic |
| Condensation: | Dynamic ventilation |
| Coils: | 6mm stainless steel |
| Water inlet: | 8 mm |
| CO2 Input: | 6 mm |
| Filling the ice tank: | 8 mm |
| Water inlet pressure: | Ideal pressure: 3 bar |
| CO2 inlet pressure: | Ideal pressure: 3.5 – 4.5 bar |
| Finish: | Skinplate housing or front glass |
| Power supply: | 230 V / 50 Hz |

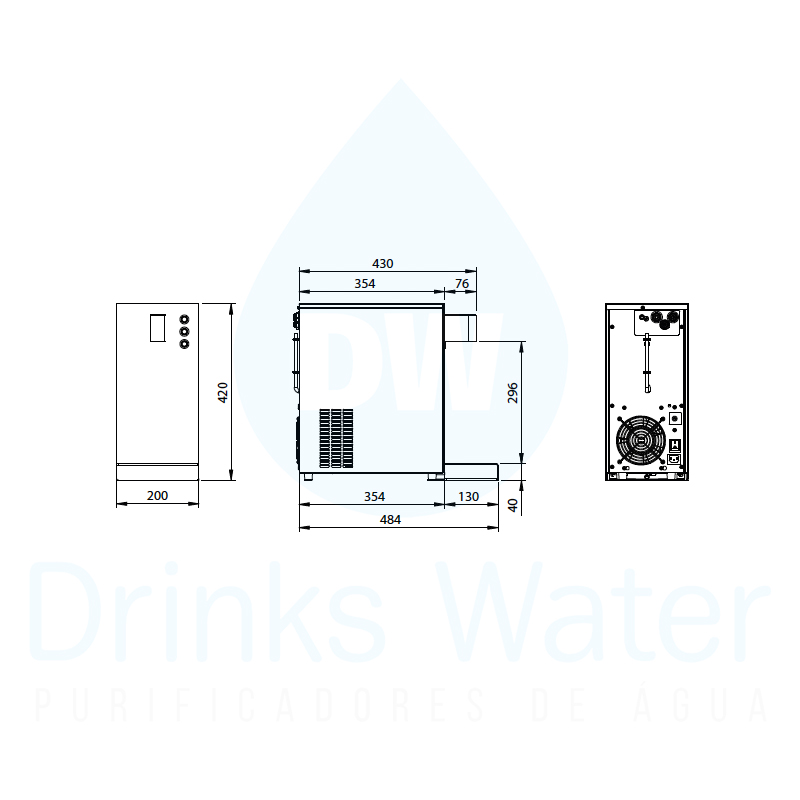

| Dimensions: | 200 x 484 x 420 mm (W x D x H) |
| Weight: | 21 Kg |
| Accessories included: | Flow regulator. |
| Accessories not included: | Filtration kit. |
